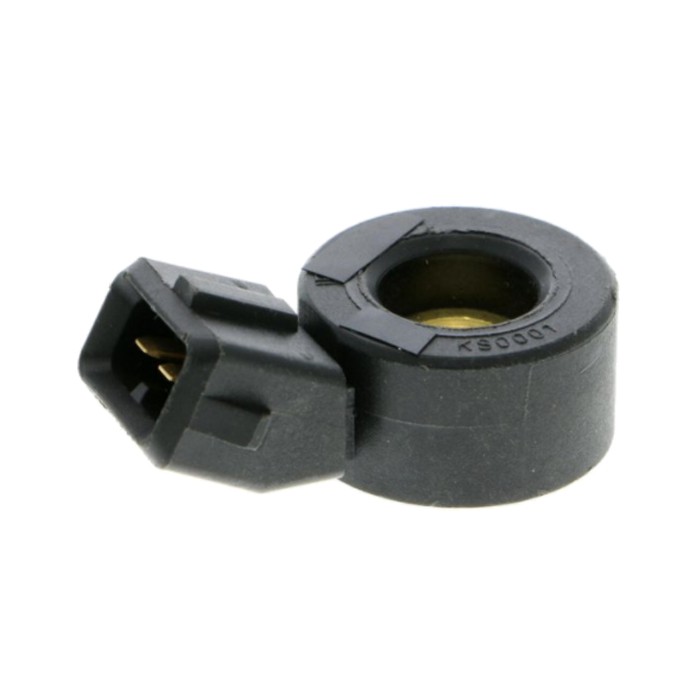

Knock Sensor

A knock sensor is an important component in modern internal combustion engines, designed to detect engine knock or detonation.

OE Number

Function
   - Detection of Engine Knock: The primary function of the knock sensor is to detect vibrations and shock waves (knock or detonation) within the engine cylinders.
   - Signal Generation: When knock occurs, the sensor generates a voltage signal that is sent to the Engine Control Unit (ECU).
   - Engine Adjustment: The ECU uses this signal to adjust ignition timing and fuel injection parameters in real-time to prevent engine damage and optimize performance.

Components
   - Piezoelectric Element: Most knock sensors use a piezoelectric crystal or ceramic element. When subjected to vibrations from engine knock, this element generates an electrical signal.
   - Connector and Wiring: Connects the sensor to the vehicle’s electrical system, transmitting the knock signal to the ECU.
   - Housing: Protects the sensor and piezoelectric element from engine heat, vibration, and contaminants.

Operation
   - Vibration Sensing: The knock sensor is typically mounted on the engine block or cylinder head, where it can detect vibrations indicative of knock.
   - Signal Processing: When knock occurs, vibrations cause the piezoelectric element to deform slightly, generating an electrical signal proportional to the intensity of knock.
   - ECU Response: The ECU analyzes the signal and adjusts engine parameters, such as ignition timing and fuel mixture, to prevent further knock and maintain optimal combustion conditions.

Importance
   - Engine Protection: Detecting and preventing engine knock is crucial for preventing damage to engine components, such as pistons, cylinder walls, and valves.
   - Performance Optimization: By adjusting engine parameters in response to knock, the knock sensor helps optimize fuel efficiency, power output, and emissions control.
   - Diagnostic Tool: Abnormal knock sensor readings or knock-related issues can indicate potential engine problems or sensor failure, prompting diagnostic checks and repairs.
Maintenance and Troubleshooting:
   - Testing: If there are symptoms of engine knock or irregular performance (e.g., loss of power, check engine light), the knock sensor can be tested using diagnostic tools to verify its operation and signal output.
   - Replacement: If the knock sensor fails due to wear, electrical faults, or contamination, it may need to be replaced. Replacement involves disconnecting electrical connectors and removing the sensor from its mounting location.

In summary

 The knock sensor is a critical component in modern engine management systems, providing real-time detection of engine knock to protect against damage and optimize engine performance. Regular maintenance and prompt replacement of faulty sensors are essential for maintaining vehicle reliability and performance.
